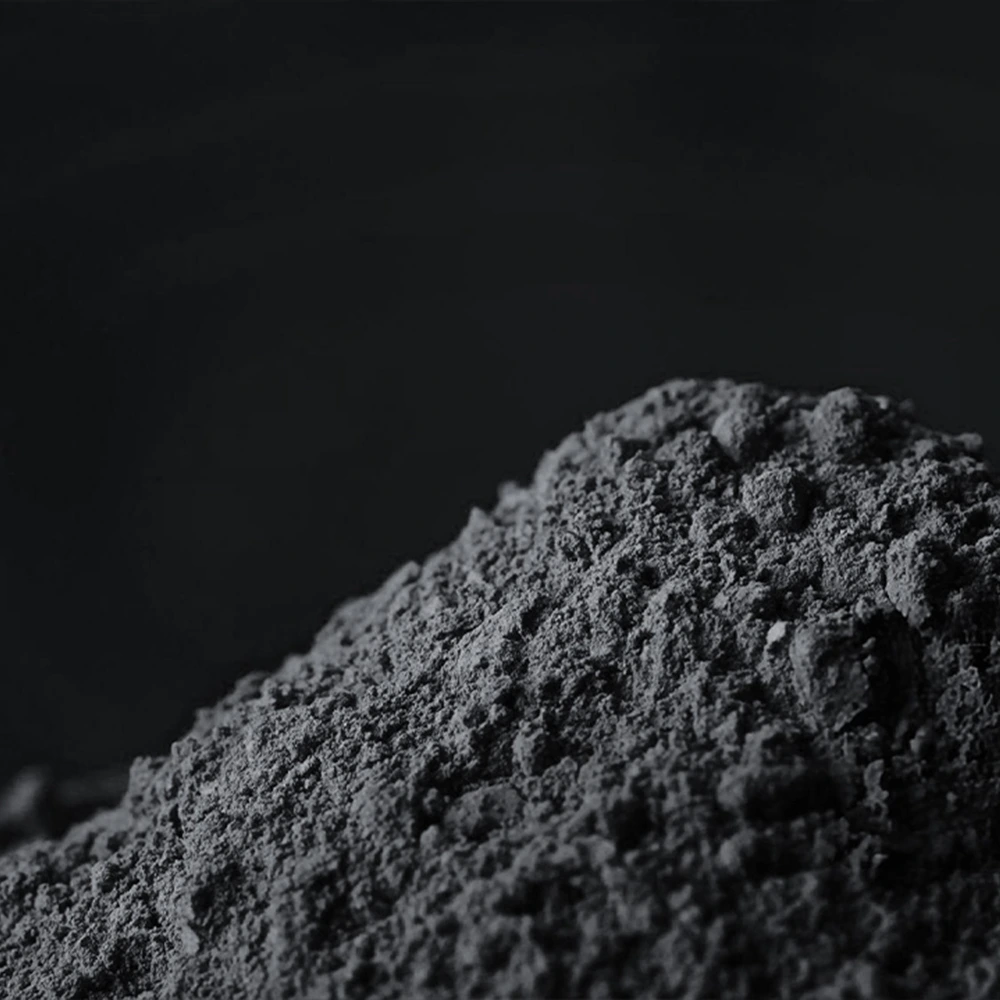

Tungsten Metal Powder (W)

Production

Tungsten Metal Powder (W)

Avis is a refiner and manufacturer of high purity tungsten powder demanded by various industries. Due to use of virgin grade raw material, sophisticated refining process as well as in house laboratory, we offer up to 99.9% purity with narrow particle size range. Apart from standard available grades, we also offer customized requirement in different level of chemical purities, density, particle size, oxygen content and flow-ability.

Packing

All Powders are available in various packing size of 1 kg. & 5 kg in cardboard box with inner LDPE bags sealed in vacuum. 25 kg. & 50kg. Packing in metal drum with inner LDPE bags sealed in inert atmosphere.

Physical Properties

Avg. particle size F.S.S.S (µ)1.55.010.015.0
Apparent density g/cc2.43.45.06.2

Chemical Composition - Typical

W, % Min. 99.85 99.85 99.85 99.85
O2, % Max. 0.06 0.04 0.03 0.025
Fe, % Max. 0.008 0.008 0.008 0.008
Mo, % Max. 0.001 0.001 0.001 0.001
Cu, % Max. 0.001 0.001 0.001 0.001
Na, % Max. 0.003 0.003 0.003 0.003
Co, % Max. 0.002 0.001 0.001 0.001
Ca, % Max. 0.001 0.001 0.001 0.001
Mg, % Max. 0.001 0.001 0.001 0.001
Mn, % Max. 0.001 0.001 0.001 0.001
Zn, % Max. 0.001 0.001 0.001 0.001

Other grain sizes are available upon request.

Production

Principal Applications

These powder are mostly used in the manufacturing of diamond segments by hot pressing as additives in the metal matrix to improve the diamond retention and cutting ability. Also, these powders are used to manufacture electrical contacts, copper tungsten electrodes, weight fillers, induction accelerators, radiation shielding fillers and counter balance. Higher density Tungsten powder used for plastic densifier.
