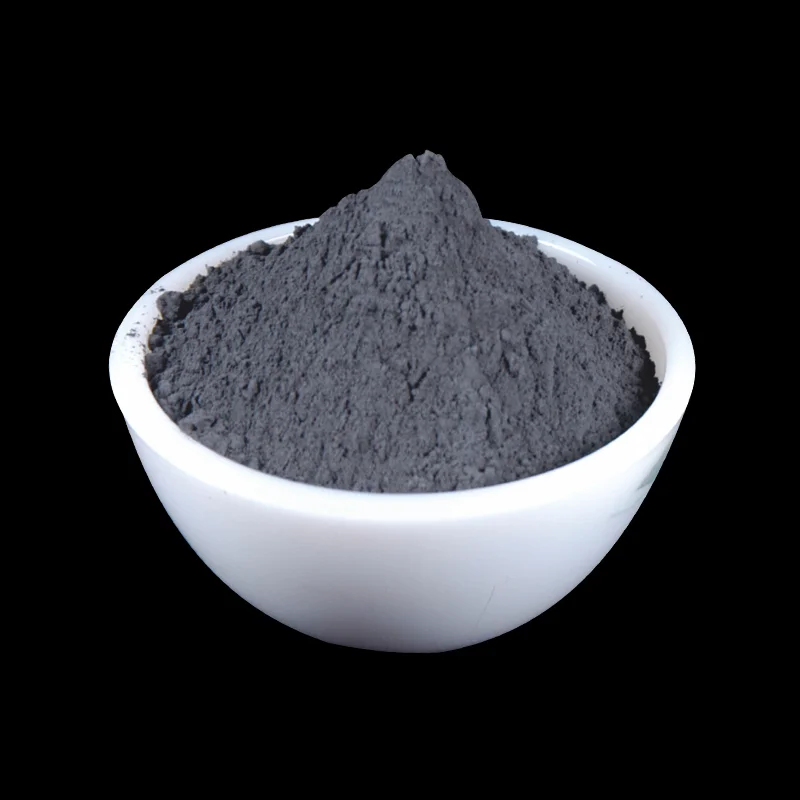

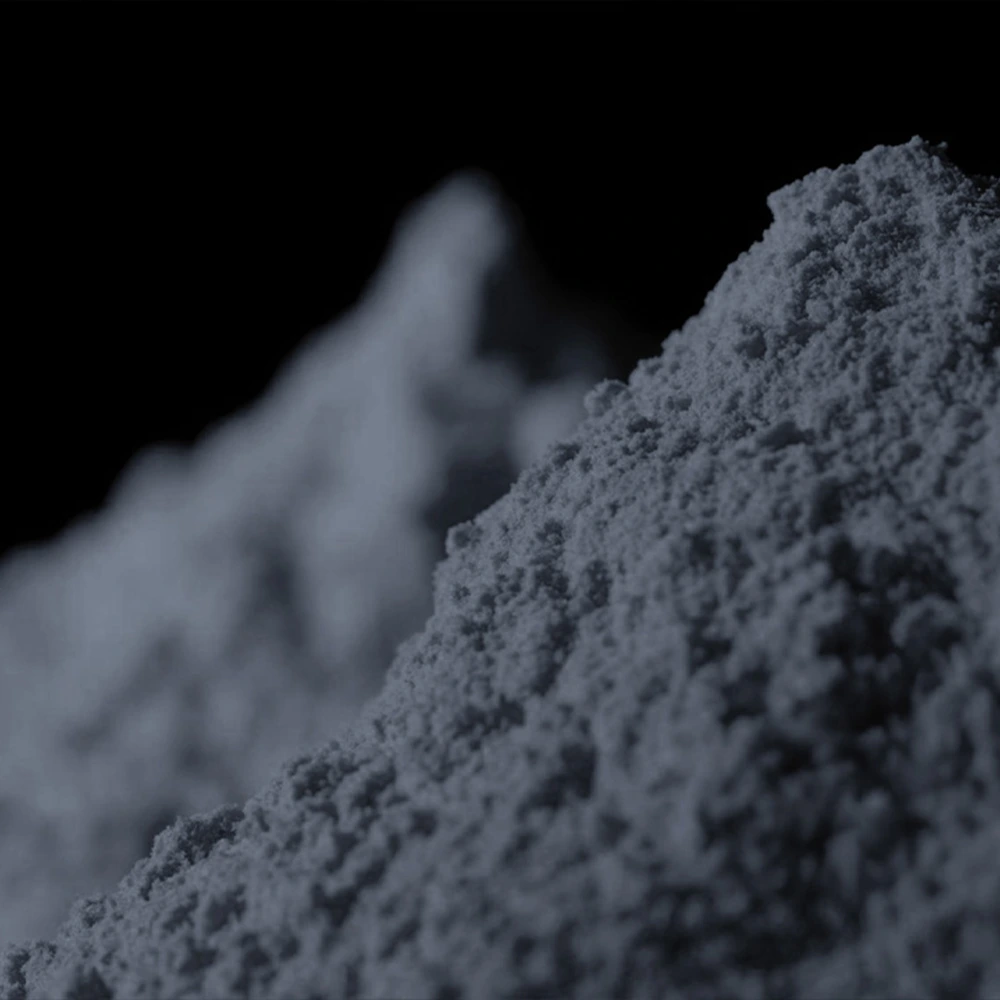

Tungsten Carbide Powder (WC)

Production

Tungsten Carbide Powder (WC)

We manufacture Tungsten Carbide powder with carburization process with the mixture of Tungsten powder and high purity carbon. With the help of state of art instruments in our laboratory, we maintain very accurate carbon percentage in the level of +/- 0.01 % of accuracy.

Packing

All Powders are available in various packing size of 1 kg. & 5 kg in cardboard box with inner LDPE bags sealed in vacuum. 25 kg. & 50kg. Packing in metal drum with inner LDPE bags sealed in inert atmosphere.

Physical Properties

Avg. particle size F.S.S.S (µ)2.55.010.015.0
Apparent density g/cc2.43.24.86.0

Chemical Composition - Typical

CBonded, % Min. 6.11 6.11 6.11 6.11
CFree, % Max. 0.03 0.03 0.03 0.03
Fe, % Max. 0.006 0.006 0.006 0.006
Mo, % Max. 0.001 0.001 0.001 0.001
Cu, % Max. 0.002 0.002 0.002 0.002
Na, % Max. 0.004 0.004 0.004 0.004
Co, % Max. 0.001 0.001 0.001 0.001
Ca, % Max. 0.001 0.001 0.001 0.001
Mg, % Max. 0.001 0.001 0.001 0.001
Mn, % Max. 0.001 0.001 0.001 0.001
Zn, % Max. 0.001 0.001 0.001 0.001

Other grain sizes and READY TO PRESS POWDER (WC-Co) are available upon request.

Production

Principal Applications

Tungsten carbide powders are used to manufacture various graded powder for cemented tungsten carbide products and manufacturing of diamond segments to increase the hardness and abrasion resistance of the tools.
